PETZL – COEUR BOLT STELL
Standard steel anchor for interior use or non-permanent installations (pack of 20)

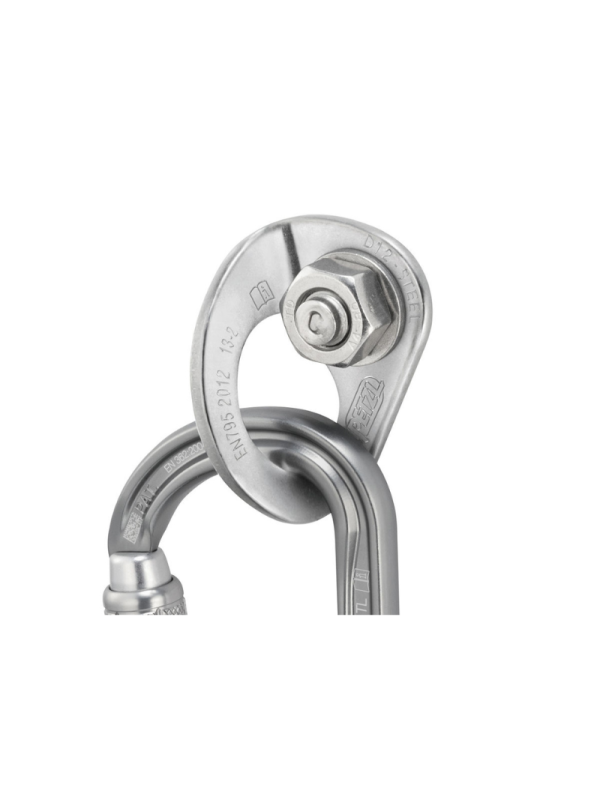

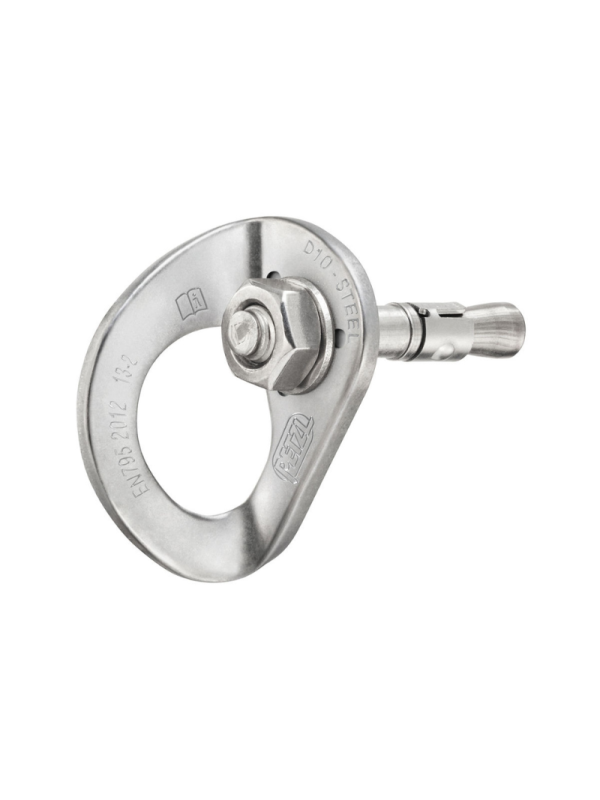

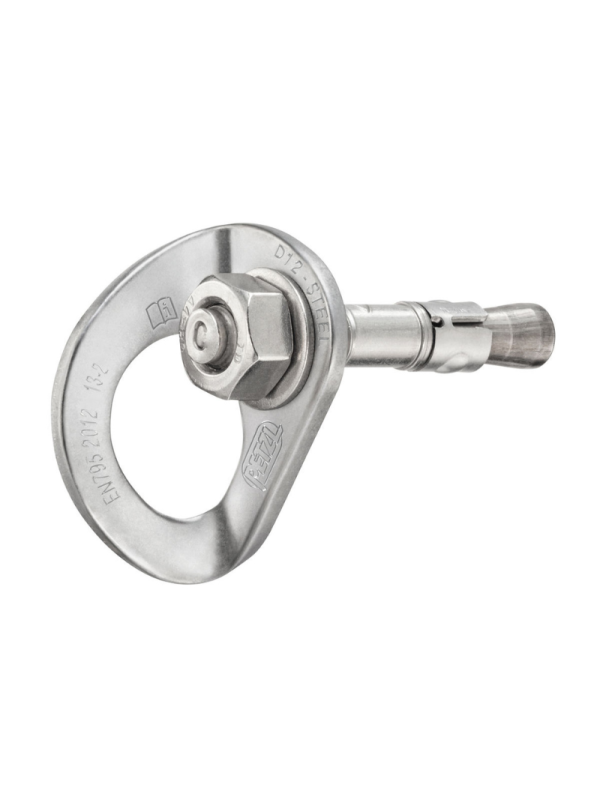

The COEUR BOLT STEEL is a standard steel anchor made up of a COEUR STEEL hanger, a bolt, and a nut. It is designed for interior use or non-permanent installations. It is available in 10 and 12 mm diameters.
Description
- Economical choice for low-corrosion environments
- Assembly composed of a COEUR STEEL hanger, a bolt, and a nut
- Easy to clip:
– the wide, ergonomic connection point facilitates carabiner clipping
– the width of the attachment point allows installation of two carabiners at the same time - Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
- Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Available in two bolt sizes (10 or 12 mm)
- COEUR STEEL hangers, available separately:
– for 10 mm diameter bolt (P36AA 10)
– for 12 mm diameter bolt (P36AA 12)
Specifications
- Material(s): steel
- Certification(s): EN 959
Downloads Certificate
- Technical Notice
Download the PDF : technical-notice-COEUR-BOLT-STEEL-STAINLESS-HCR-1 - Declaration of Conformity
Download the PDF : UE-Declaration-P36BAXX-Coeur-Bolt-Steel
| Weight | 110 g, 135 g |
|---|---|
| Drilling diameter | 10 mm, 12 mm |
| Total bolt length | 85 mm, 105 mm |
| Shear strength in 50 MPa concrete | 23 kN, 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN, 18 kN |
| Inner pack count | 1 |
| Brands | PETZL |
| Product Category | ANCHOR |
