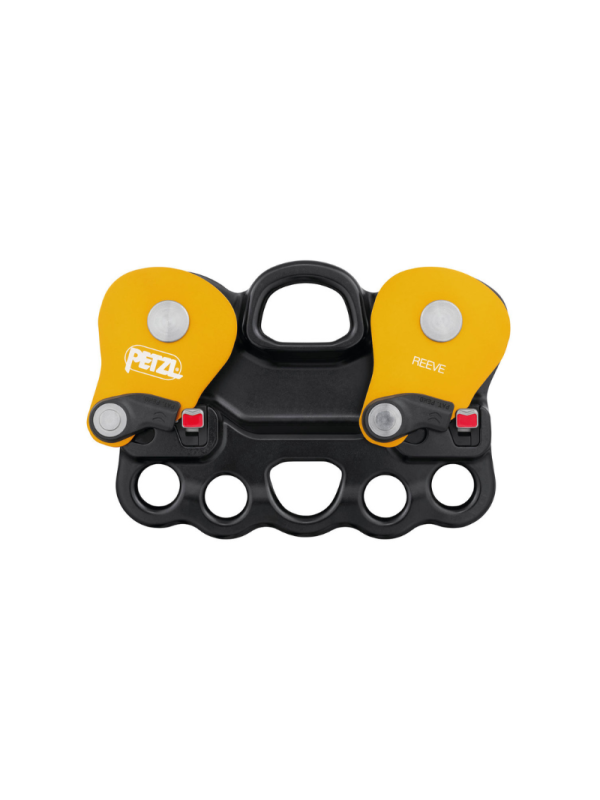

PETZL – REEVE

Description

• An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.
• Operations and efficiency are optimized:

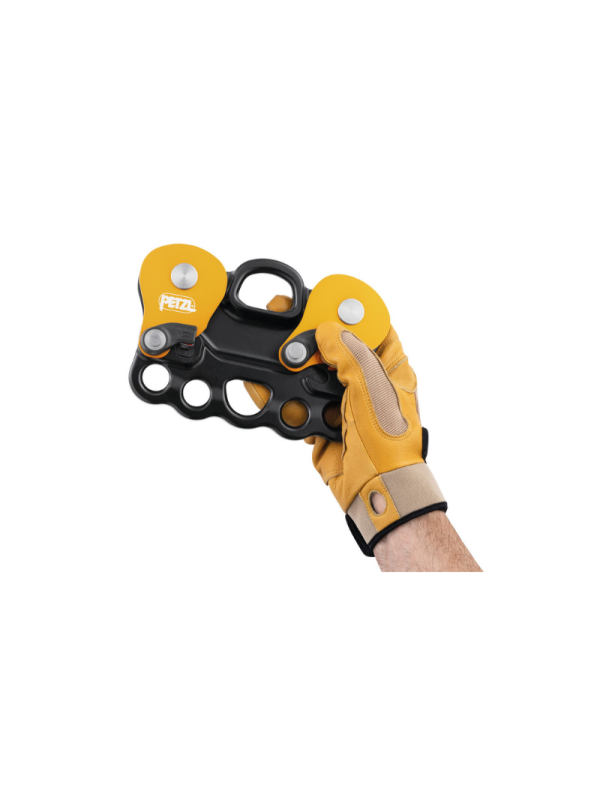

  – Triple-action opening of moving side plates, possible even with gloves
  – Red indicators provide a visual warning when the side plates are not correctly locked
• Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
  – Possible to rig the system before installing it on the main line
• Multiple configurations and connections are possible:

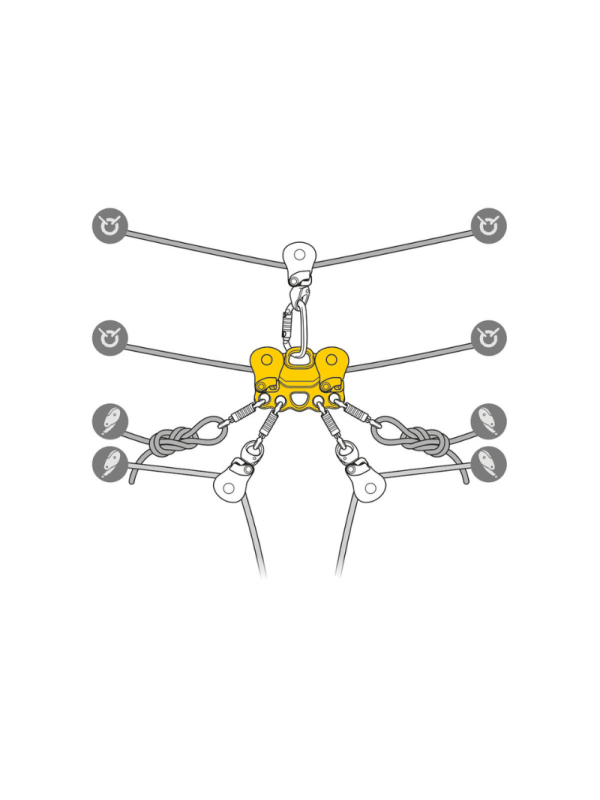

  – System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance

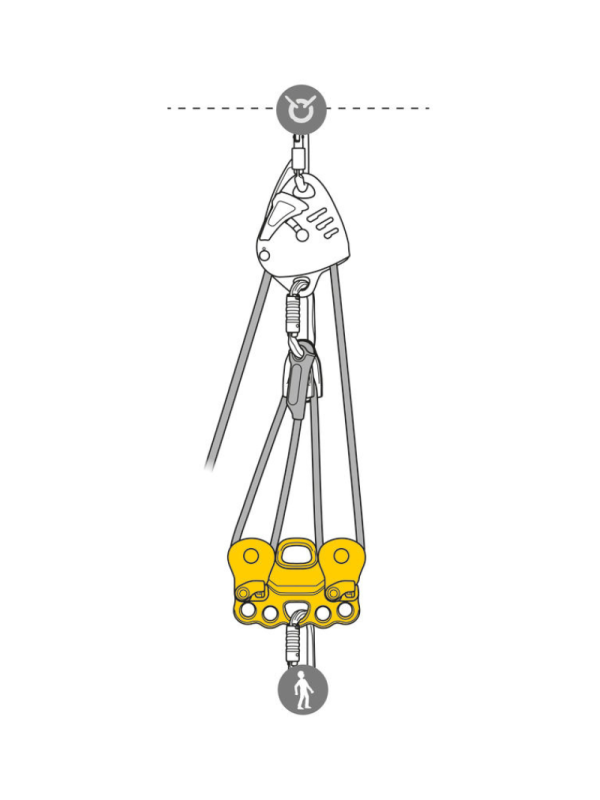

  – Pulley can be used in a haul system

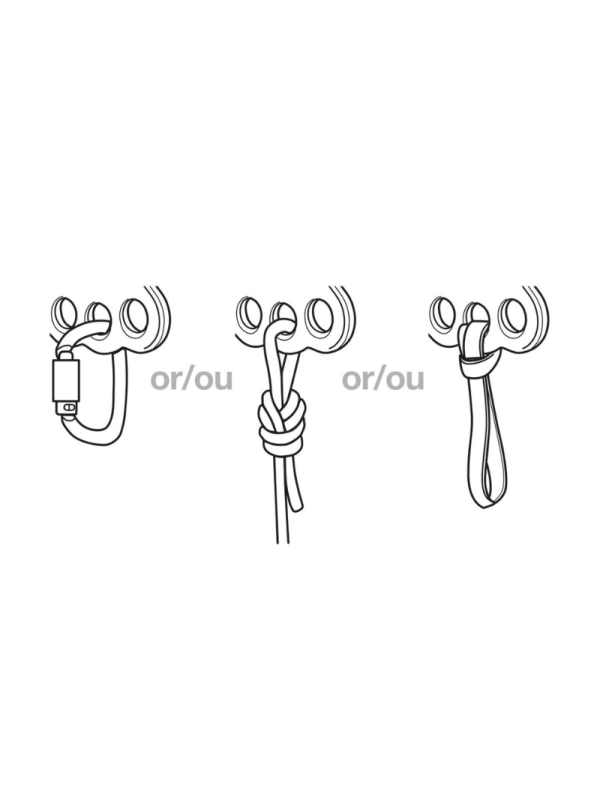

  – Hole design allows ropes or slings to be threaded for direct connection
  – 19 mm holes allow locking sleeves of most carabiners to pass through
  – The odd number of attachment holes enables the system to be centered and balanced
  – Up to three people can be connected at the same time

Specifications

• Weight: 650 g
• Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA
• Material(s): Aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed Ball Bearings
• Sheave diameter: 38 mm

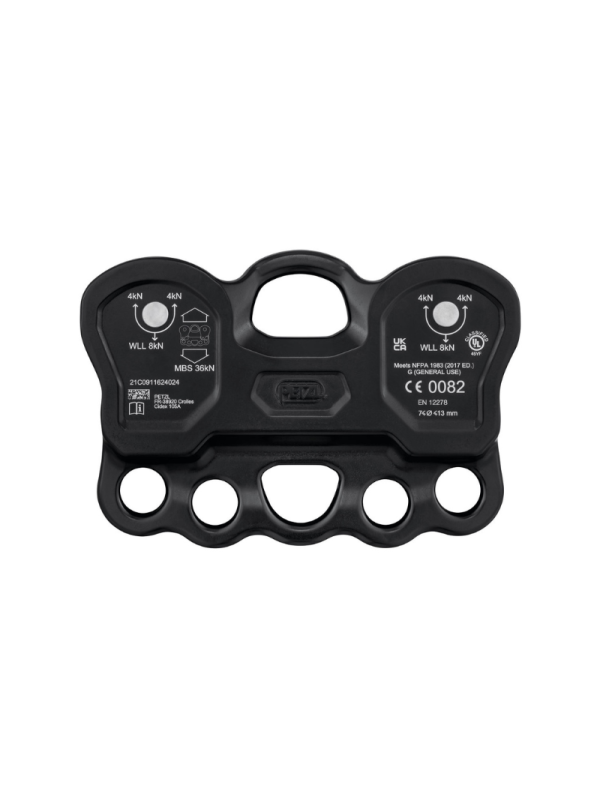

• Working Load Limit: 4 x 2 kN = 8 kN
• Breaking strength: 36 kN
• Efficiency: 95 %

Downloads Certificate
