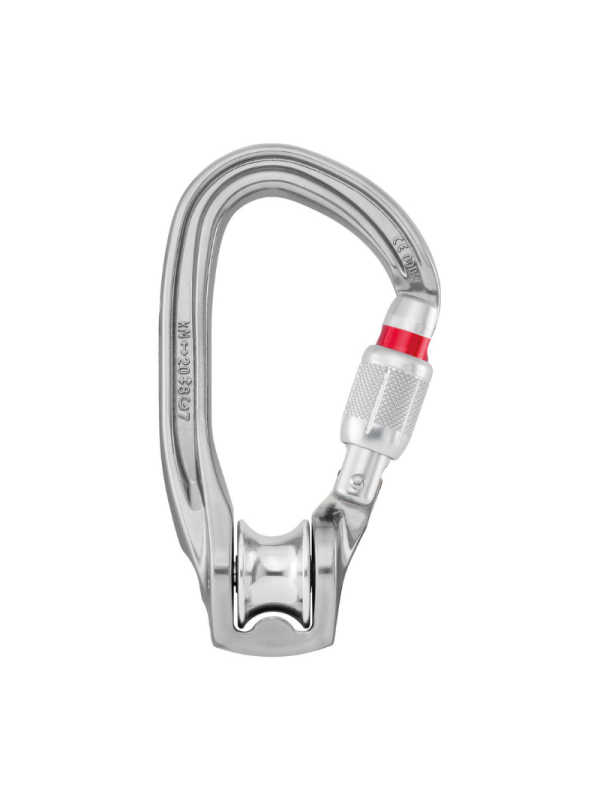

PETZL – ROLLCLIP Z
Pulley-carabiner that facilitates installation on anchors and devices.

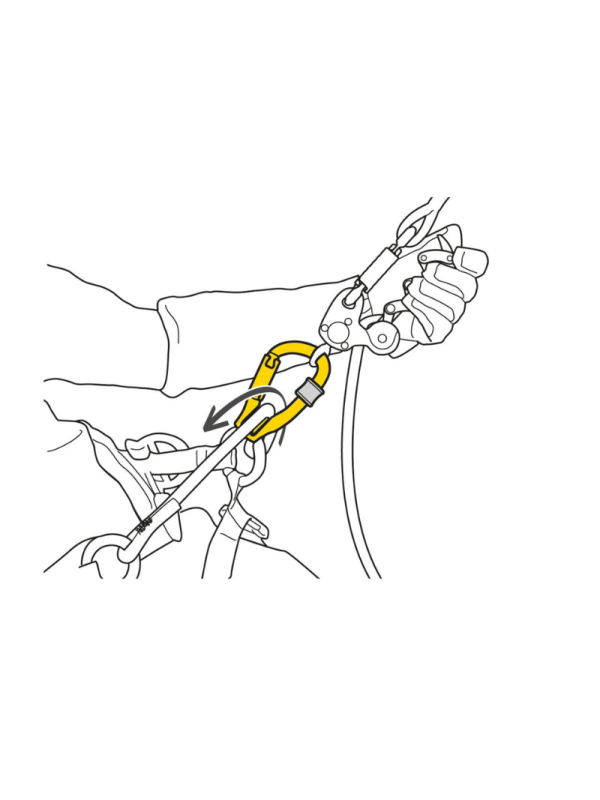

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Description
- Easier handling:
– sheave mounted on sealed ball bearings for excellent efficiency

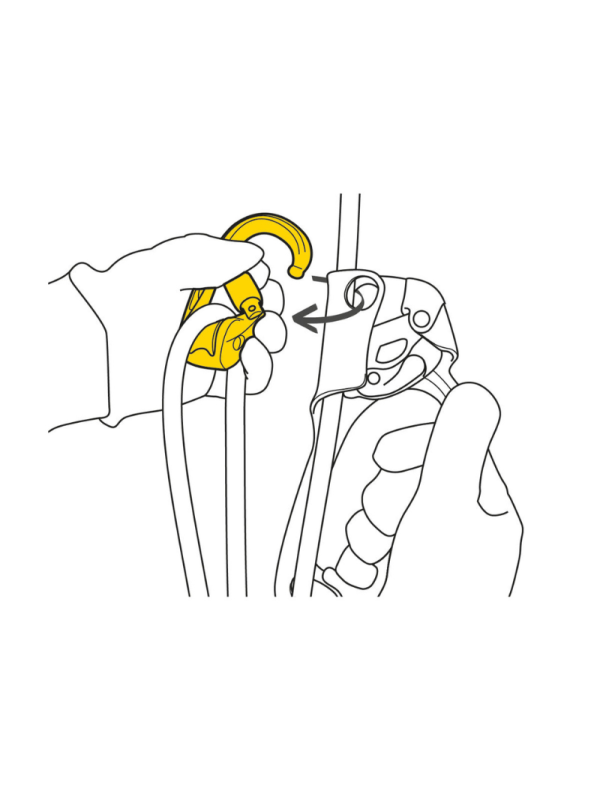

– gate opening on the non-pulley side, to facilitate installation on devices
– Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place - H cross-section of carabiner:
– ensures an improved strength-to-weight ratio
– protects markings from abrasion - Two locking systems available:
– TRIACT-LOCK: automatic locking with triple-action gate opening
– SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
Downloads Certificate
- Technical Notice
Download the PDF : technical-notice-ROLLCLIP-2 - Declaration of Conformity
Download the PDF : UKCA-AET-P74-ROLLCLIP A
Download the PDF : UKCA-Declaration-P74 TL-ROLLCLIP A TL
| Locking system | TRIACT-LOCK, SCREW-LOCK |
|---|---|
| Weight | 110 g, 105 g |
| Certification(s) | CE EN 362, EN 12278, UKCA, EAC |
| Gate opening | 20 mm, 21 mm |
| Inner pack count | 1 |
| Brands | PETZL |
| Product Category | PULLEY |
| Shop by Activity |
